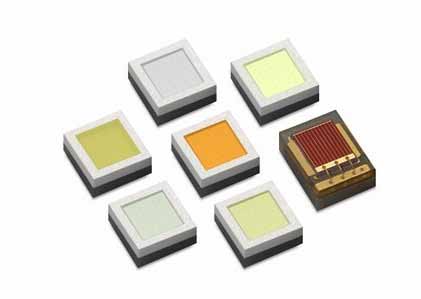

Lumileds introduced two new colours – PC Amber and Lime for its LUXEON Rubix LED portfolio. The 1.4 square millimeter footprint is almost pixel-like and disguises the light output that’s possible from this high-power LED. LUXEON Rubix maximizes design flexibility. The high power, uniform focal height, and narrow-angle beam control allow efficient and impactful designs.
Alex Wang, President & CEO, General Luminaire Co. Ltd., said: “LUXEON Rubix is the most important device for our next generation L2 light engine and architectural lighting product development. The compact form factor and extremely high drive current set it apart from other colour options.”
LP Liew, Product Marketing Manager, Lumileds, said: “The addition of Lime and PC Amber create opportunities to boost CRI, brightness, and efficacy. Objects will often appear more vivid when Lime is used instead of white (RGBL v/s RGBW). With Lime and PC Amber, achieving 90+CRI at 3000K, 4000K or 5000K is no problem, and in a 6-channel solution, 95+ CRI is possible.”
The new PC Amber delivers 250 lumens and Lime a stunning 510 lumens at 1500mA. Typical output for other colours at 1500mA and Tj 85°C is Red 85lm, Green 310lm, Blue 112lm, and Royal Blue 1635mW. For white, the typical output is 440lm at 93lm/W.
