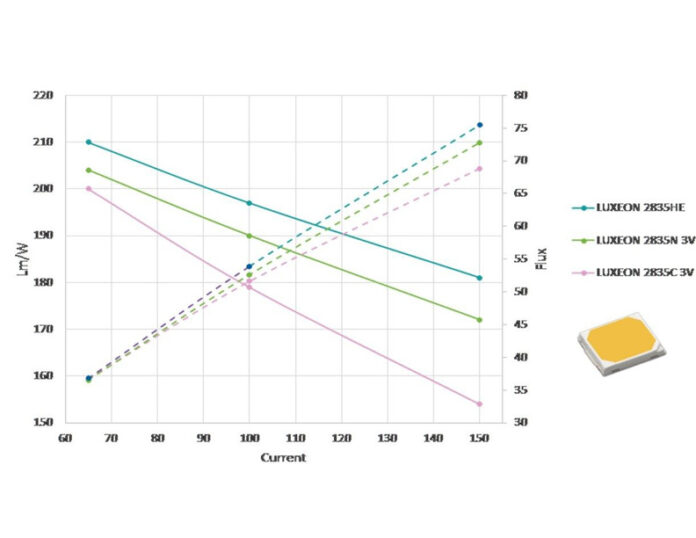

Lumileds announced the new LUXEON 2835N fills the performance gap between the LUXEON 2835C and the LUXEON 2835 HE. The three variants are relatively close in performance at 65mA – LUXEON 2835N delivers 204 lumens per Watt – as current increases, real differences in both light output and efficacy become clear. With its 300mA current capability and excellent thermal characteristics, the new LUXEON 2835N is an optimal 3V choice.

Ryan Dong, Product Manager, said: “The value of LUXEON 2835N starts to show itself as luminaire manufacturers take advantage of its current and thermal capabilities. At 100mA, we’re delivering 190lm/W, and at 150mA LUXEON 2835N is producing 72.8 lumens with an efficacy of 172lm/W.”

LUXEON 2835N is available in a complete CCT/CRI portfolio. Both 80 and 90 CRI are supported at CCTs from 1800K to 6500K. The incredibly reliable package has been proven, with more than 12-thousand hours of data for the LM80 report. 4 quadrant micro color bins and 0.1Vf bins complete an offering for luminaire manufacturers that gives them access to the exact parts they need for success.
